Orient Star GMT – DJ00001B

Orient launched three of its Orient Star models in the international market recently. The three models come with GMT, Retrograde and Open Heart features respectively.

In this post, I shall take a look at the GMT model, DJ00001B.

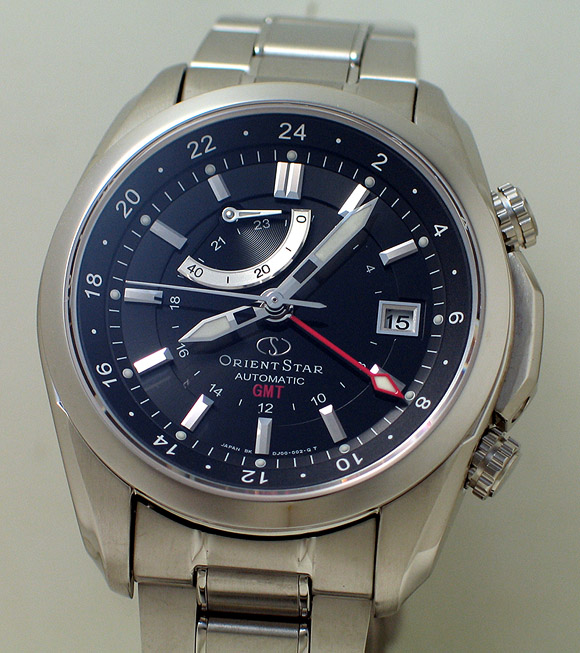

Below is a close up shot of the dial. It comes with applied hour markers and has a power reserve indicator at the 11 o’clock position and a date window at the 3 o’clock position. The long GMT hand is red in colour and contrasts well with the black dial. It can be set independently from the hour hand.

Besides the 24 hour markings on the dial, the watch also comes with an inner 24 hour rotating ring for keeping track of time in another timezone.

The crown at the 2 o’clock position has several functions. At the pushed in position, it is used to hand wind the watch. When pulled to the first click position and turned in clockwise direction, it sets the date. When turned in anti-clockwise direction, it sets the GMT hand.

At the second click position, it sets the time. The second hand will stop when the crown is at this position. The GMT hand will advance accordingly as you set the time. However, you can set it independently with the crown at the first click position as mentioned above.

The crown at the 4 o’clock position is used to set the 24 hour rotating ring. Once the rotating ring is set to the desired timezone, you can lock the screw-in crown to ensure that the ring stays at the set position. The mechanism here is designed such that the position of the rotating ring will not be affected as you screw in the crown.

Note that the crown at the 2 o’clock position does not screw in.

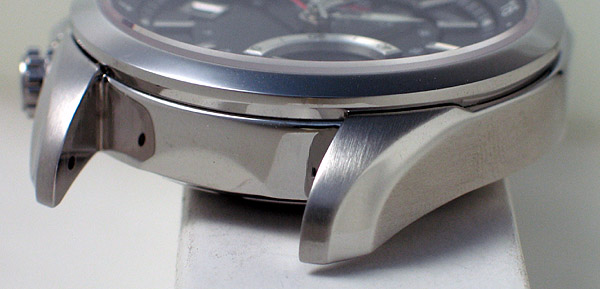

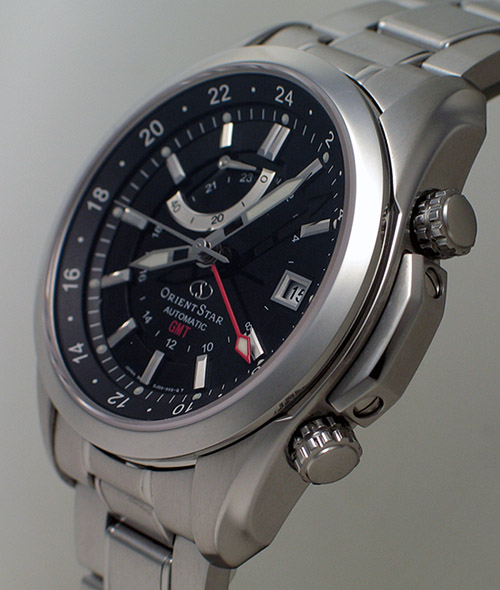

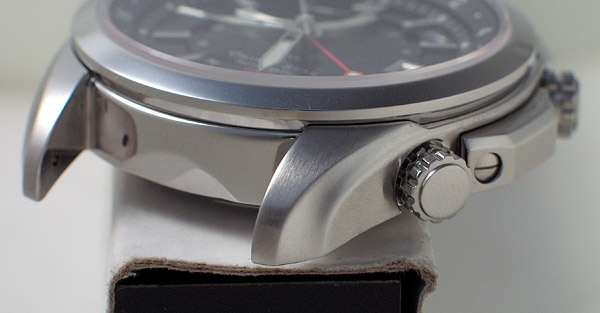

Below are a couple of shots that show the side profile of the watch from various angles.

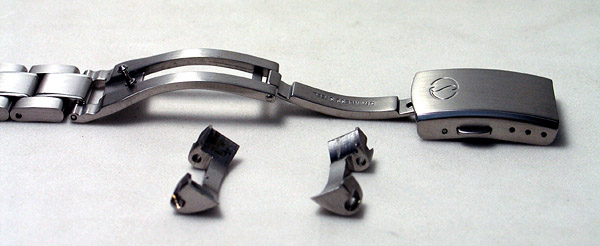

The watch is equipped with an oyster style bracelet with push button lock and solid end links (SEL).

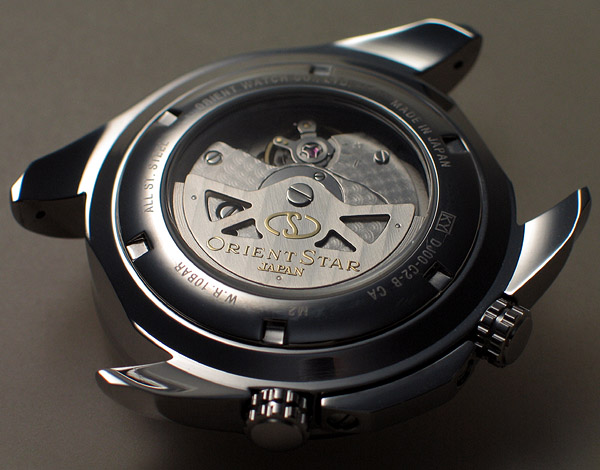

Here’s the see through back showing the 40P50 GMT movement.

Diameter: 44mm excluding crown
Lug to lug: 50mm
Lug Width: 21mm
Thickness: 13.5mm

++++++++++++++++++++++++++++++++++++++++++++++++++++
Orient DJ00001B featured in this post is provided by
Authorized Orient distributor in Singapore

483 Sims Avenue,
Singapore 387555
Tel: 6273 3355 Fax: 6278 8929
bigtime@singnet.com.sg
www.chang.com.sg
